Clustering

Clustering#

Clustering seeks to group data into clusters based on their properties and then allow us to predict which cluster a new member belongs.

import numpy as np
import matplotlib.pyplot as plt

We’ll use a dataset generator that is part of scikit-learn called make_moons. This generates data that falls into 2 different sets with a shape that looks like half-moons.

from sklearn import datasets

def generate_data():
    xvec, val = datasets.make_moons(200, noise=0.2)

    # encode the output to be 2 elements
    x = []
    v = []
    for xv, vv in zip(xvec, val):
        x.append(np.array(xv))
        v.append(vv)

    return np.array(x), np.array(v)

x, v = generate_data()

Let’s look at a point and it’s value

print(f"x = {x[0]}, value = {v[0]}")

x = [ 1.11239295 -0.40600028], value = 1

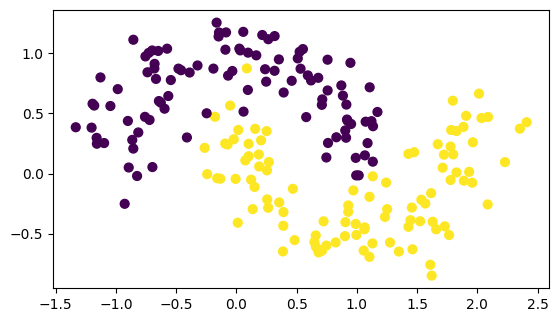

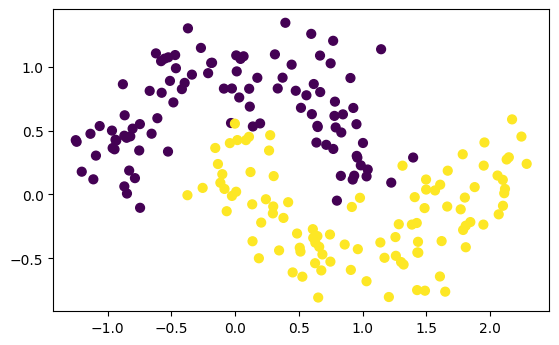

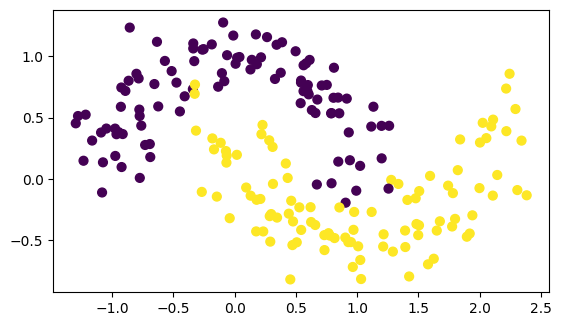

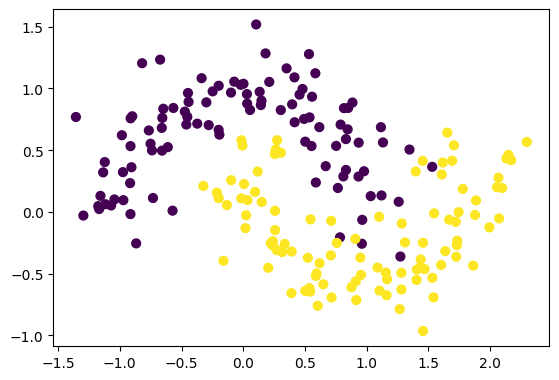

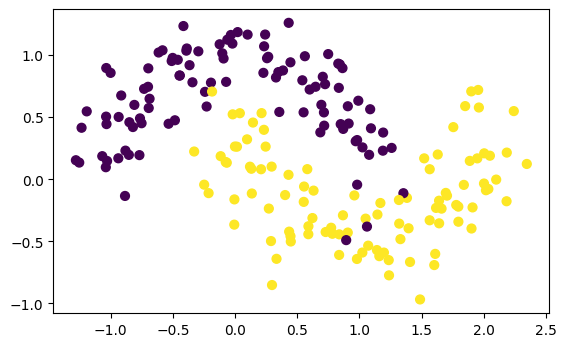

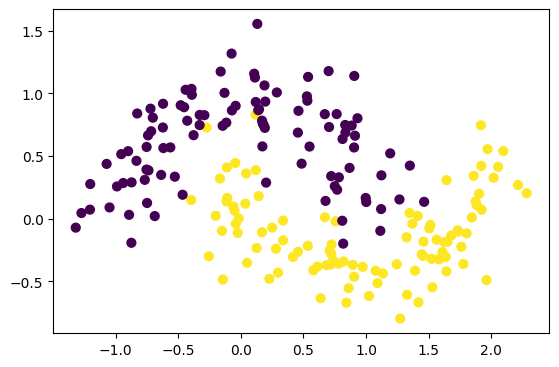

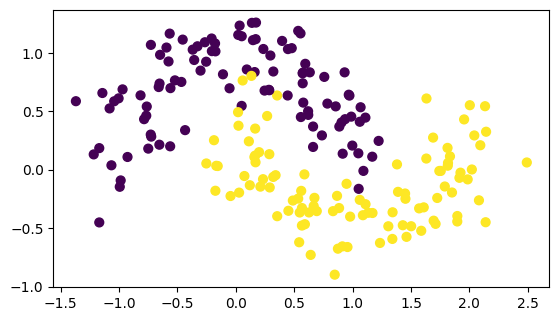

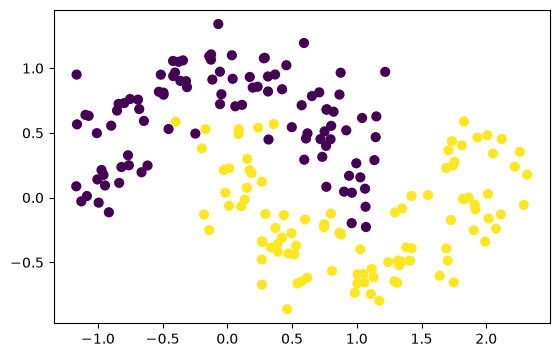

Now let’s plot the data

def plot_data(x, v):
    xpt = [q[0] for q in x]
    ypt = [q[1] for q in x]

    fig, ax = plt.subplots()
    ax.scatter(xpt, ypt, s=40, c=v, cmap="viridis")
    ax.set_aspect("equal")
    return fig

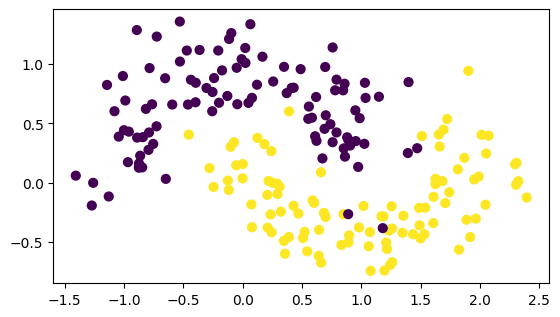

fig = plot_data(x, v)

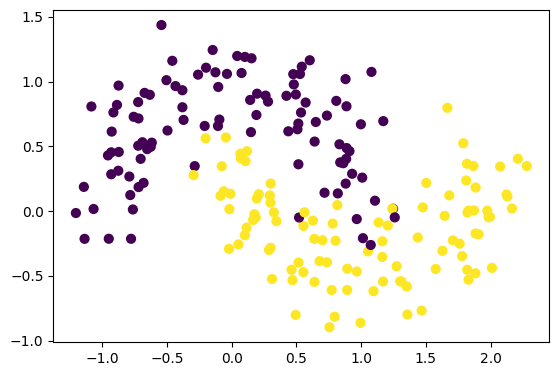

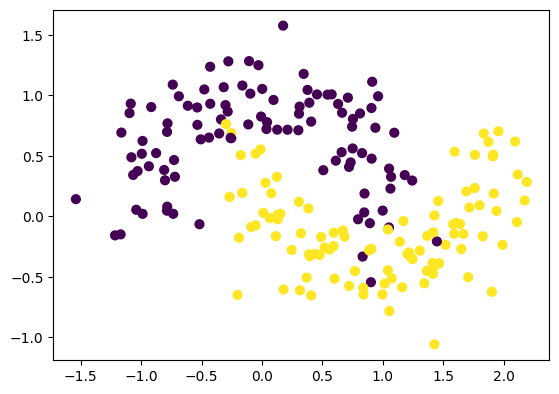

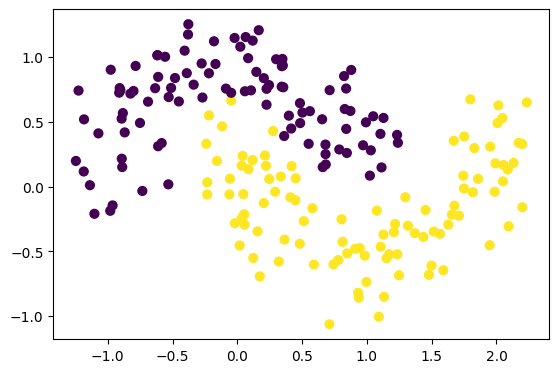

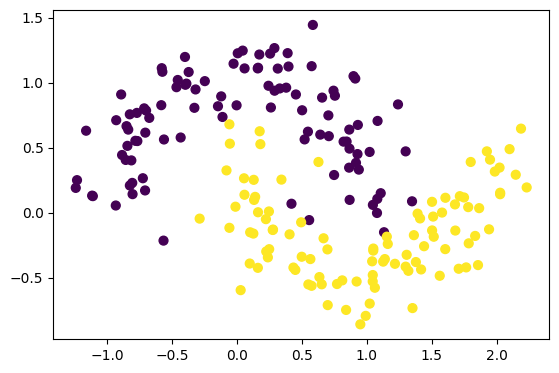

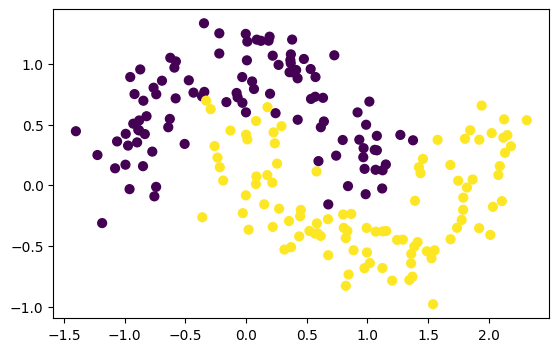

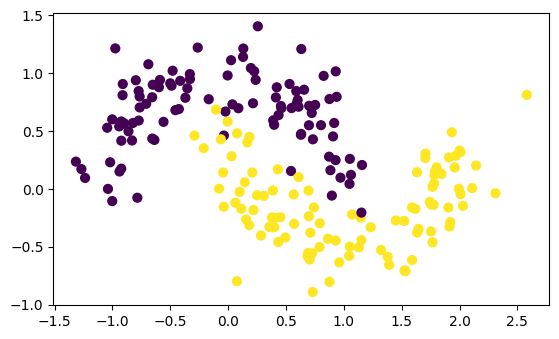

../_images/e1751e9471db3425ce654c3c260ef56b11091180754da1b9370ded139d95080f.png

We want to partition this domain into 2 regions, such that when we come in with a new point, we know which group it belongs to.

First we setup and train our network

from keras.models import Sequential
from keras.layers import Dense, Dropout, Activation, Input
from keras.optimizers import RMSprop

/opt/hostedtoolcache/Python/3.14.2/x64/lib/python3.14/site-packages/keras/src/export/tf2onnx_lib.py:8: FutureWarning: In the future `np.object` will be defined as the corresponding NumPy scalar.
  if not hasattr(np, "object"):

model = Sequential()
model.add(Input(shape=(2,)))
model.add(Dense(50, activation="relu"))
model.add(Dense(20, activation="relu"))
model.add(Dense(1, activation="sigmoid"))

rms = RMSprop()
model.compile(loss='binary_crossentropy',
              optimizer=rms, metrics=['accuracy'])

model.summary()

Model: "sequential"

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓
┃ Layer (type)                    ┃ Output Shape           ┃       Param # ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩
│ dense (Dense)                   │ (None, 50)             │           150 │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ dense_1 (Dense)                 │ (None, 20)             │         1,020 │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ dense_2 (Dense)                 │ (None, 1)              │            21 │
└─────────────────────────────────┴────────────────────────┴───────────────┘

 Total params: 1,191 (4.65 KB)

 Trainable params: 1,191 (4.65 KB)

 Non-trainable params: 0 (0.00 B)

We seem to need a lot of epochs here to get a good result

epochs = 100
results = model.fit(x, v, batch_size=50, epochs=epochs, verbose=2)

Epoch 1/100

4/4 - 0s - 6ms/step - accuracy: 0.4600 - loss: 0.7073

Epoch 2/100

4/4 - 0s - 6ms/step - accuracy: 0.6850 - loss: 0.6566

Epoch 3/100

4/4 - 0s - 6ms/step - accuracy: 0.7150 - loss: 0.6216

Epoch 4/100

4/4 - 0s - 6ms/step - accuracy: 0.7500 - loss: 0.5923

Epoch 5/100

4/4 - 0s - 6ms/step - accuracy: 0.7800 - loss: 0.5668

Epoch 6/100

4/4 - 0s - 6ms/step - accuracy: 0.7900 - loss: 0.5431

Epoch 7/100

4/4 - 0s - 5ms/step - accuracy: 0.8000 - loss: 0.5217

Epoch 8/100

4/4 - 0s - 6ms/step - accuracy: 0.8100 - loss: 0.5019

Epoch 9/100

4/4 - 0s - 6ms/step - accuracy: 0.8100 - loss: 0.4838

Epoch 10/100

4/4 - 0s - 6ms/step - accuracy: 0.8100 - loss: 0.4672

Epoch 11/100

4/4 - 0s - 6ms/step - accuracy: 0.8100 - loss: 0.4518

Epoch 12/100

4/4 - 0s - 6ms/step - accuracy: 0.8150 - loss: 0.4379

Epoch 13/100

4/4 - 0s - 6ms/step - accuracy: 0.8350 - loss: 0.4241

Epoch 14/100

4/4 - 0s - 6ms/step - accuracy: 0.8500 - loss: 0.4113

Epoch 15/100

4/4 - 0s - 6ms/step - accuracy: 0.8450 - loss: 0.4002

Epoch 16/100

4/4 - 0s - 6ms/step - accuracy: 0.8500 - loss: 0.3892

Epoch 17/100

4/4 - 0s - 23ms/step - accuracy: 0.8550 - loss: 0.3801

Epoch 18/100

4/4 - 0s - 6ms/step - accuracy: 0.8500 - loss: 0.3710

Epoch 19/100

4/4 - 0s - 6ms/step - accuracy: 0.8550 - loss: 0.3627

Epoch 20/100

4/4 - 0s - 5ms/step - accuracy: 0.8550 - loss: 0.3551

Epoch 21/100

4/4 - 0s - 5ms/step - accuracy: 0.8550 - loss: 0.3488

Epoch 22/100

4/4 - 0s - 5ms/step - accuracy: 0.8550 - loss: 0.3437

Epoch 23/100

4/4 - 0s - 5ms/step - accuracy: 0.8550 - loss: 0.3373

Epoch 24/100

4/4 - 0s - 9ms/step - accuracy: 0.8550 - loss: 0.3315

Epoch 25/100

4/4 - 0s - 6ms/step - accuracy: 0.8550 - loss: 0.3267

Epoch 26/100

4/4 - 0s - 6ms/step - accuracy: 0.8550 - loss: 0.3224

Epoch 27/100

4/4 - 0s - 5ms/step - accuracy: 0.8550 - loss: 0.3174

Epoch 28/100

4/4 - 0s - 6ms/step - accuracy: 0.8550 - loss: 0.3132

Epoch 29/100

4/4 - 0s - 6ms/step - accuracy: 0.8550 - loss: 0.3106

Epoch 30/100

4/4 - 0s - 21ms/step - accuracy: 0.8550 - loss: 0.3057

Epoch 31/100

4/4 - 0s - 6ms/step - accuracy: 0.8550 - loss: 0.3030

Epoch 32/100

4/4 - 0s - 5ms/step - accuracy: 0.8550 - loss: 0.2995

Epoch 33/100

4/4 - 0s - 5ms/step - accuracy: 0.8600 - loss: 0.2969

Epoch 34/100

4/4 - 0s - 5ms/step - accuracy: 0.8600 - loss: 0.2954

Epoch 35/100

4/4 - 0s - 5ms/step - accuracy: 0.8600 - loss: 0.2912

Epoch 36/100

4/4 - 0s - 5ms/step - accuracy: 0.8650 - loss: 0.2894

Epoch 37/100

4/4 - 0s - 5ms/step - accuracy: 0.8650 - loss: 0.2873

Epoch 38/100

4/4 - 0s - 6ms/step - accuracy: 0.8650 - loss: 0.2853

Epoch 39/100

4/4 - 0s - 5ms/step - accuracy: 0.8700 - loss: 0.2833

Epoch 40/100

4/4 - 0s - 5ms/step - accuracy: 0.8700 - loss: 0.2819

Epoch 41/100

4/4 - 0s - 6ms/step - accuracy: 0.8700 - loss: 0.2776

Epoch 42/100

4/4 - 0s - 5ms/step - accuracy: 0.8700 - loss: 0.2759

Epoch 43/100

4/4 - 0s - 5ms/step - accuracy: 0.8700 - loss: 0.2736

Epoch 44/100

4/4 - 0s - 5ms/step - accuracy: 0.8850 - loss: 0.2734

Epoch 45/100

4/4 - 0s - 5ms/step - accuracy: 0.8850 - loss: 0.2709

Epoch 46/100

4/4 - 0s - 5ms/step - accuracy: 0.8900 - loss: 0.2676

Epoch 47/100

4/4 - 0s - 5ms/step - accuracy: 0.9000 - loss: 0.2658

Epoch 48/100

4/4 - 0s - 5ms/step - accuracy: 0.8950 - loss: 0.2644

Epoch 49/100

4/4 - 0s - 5ms/step - accuracy: 0.9000 - loss: 0.2621

Epoch 50/100

4/4 - 0s - 5ms/step - accuracy: 0.8950 - loss: 0.2613

Epoch 51/100

4/4 - 0s - 5ms/step - accuracy: 0.9000 - loss: 0.2607

Epoch 52/100

4/4 - 0s - 5ms/step - accuracy: 0.9000 - loss: 0.2572

Epoch 53/100

4/4 - 0s - 5ms/step - accuracy: 0.8950 - loss: 0.2560

Epoch 54/100

4/4 - 0s - 5ms/step - accuracy: 0.8950 - loss: 0.2544

Epoch 55/100

4/4 - 0s - 5ms/step - accuracy: 0.9050 - loss: 0.2527

Epoch 56/100

4/4 - 0s - 5ms/step - accuracy: 0.9050 - loss: 0.2513

Epoch 57/100

4/4 - 0s - 30ms/step - accuracy: 0.9100 - loss: 0.2504

Epoch 58/100

4/4 - 0s - 5ms/step - accuracy: 0.9050 - loss: 0.2480

Epoch 59/100

4/4 - 0s - 5ms/step - accuracy: 0.9050 - loss: 0.2497

Epoch 60/100

4/4 - 0s - 5ms/step - accuracy: 0.9050 - loss: 0.2447

Epoch 61/100

4/4 - 0s - 5ms/step - accuracy: 0.9000 - loss: 0.2438

Epoch 62/100

4/4 - 0s - 5ms/step - accuracy: 0.9000 - loss: 0.2431

Epoch 63/100

4/4 - 0s - 5ms/step - accuracy: 0.9100 - loss: 0.2412

Epoch 64/100

4/4 - 0s - 5ms/step - accuracy: 0.9150 - loss: 0.2391

Epoch 65/100

4/4 - 0s - 5ms/step - accuracy: 0.9150 - loss: 0.2403

Epoch 66/100

4/4 - 0s - 14ms/step - accuracy: 0.9150 - loss: 0.2362

Epoch 67/100

4/4 - 0s - 5ms/step - accuracy: 0.9150 - loss: 0.2354

Epoch 68/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.2349

Epoch 69/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.2321

Epoch 70/100

4/4 - 0s - 7ms/step - accuracy: 0.9150 - loss: 0.2334

Epoch 71/100

4/4 - 0s - 7ms/step - accuracy: 0.9200 - loss: 0.2294

Epoch 72/100

4/4 - 0s - 6ms/step - accuracy: 0.9100 - loss: 0.2279

Epoch 73/100

4/4 - 0s - 21ms/step - accuracy: 0.9150 - loss: 0.2272

Epoch 74/100

4/4 - 0s - 5ms/step - accuracy: 0.9150 - loss: 0.2271

Epoch 75/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.2246

Epoch 76/100

4/4 - 0s - 5ms/step - accuracy: 0.9100 - loss: 0.2232

Epoch 77/100

4/4 - 0s - 5ms/step - accuracy: 0.9150 - loss: 0.2220

Epoch 78/100

4/4 - 0s - 6ms/step - accuracy: 0.9150 - loss: 0.2201

Epoch 79/100

4/4 - 0s - 5ms/step - accuracy: 0.9250 - loss: 0.2225

Epoch 80/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.2170

Epoch 81/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.2163

Epoch 82/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.2154

Epoch 83/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.2130

Epoch 84/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.2119

Epoch 85/100

4/4 - 0s - 5ms/step - accuracy: 0.9150 - loss: 0.2104

Epoch 86/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.2111

Epoch 87/100

4/4 - 0s - 5ms/step - accuracy: 0.9250 - loss: 0.2070

Epoch 88/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.2060

Epoch 89/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.2050

Epoch 90/100

4/4 - 0s - 5ms/step - accuracy: 0.9150 - loss: 0.2039

Epoch 91/100

4/4 - 0s - 5ms/step - accuracy: 0.9250 - loss: 0.2012

Epoch 92/100

4/4 - 0s - 5ms/step - accuracy: 0.9250 - loss: 0.1999

Epoch 93/100

4/4 - 0s - 5ms/step - accuracy: 0.9150 - loss: 0.1984

Epoch 94/100

4/4 - 0s - 5ms/step - accuracy: 0.9300 - loss: 0.1976

Epoch 95/100

4/4 - 0s - 5ms/step - accuracy: 0.9250 - loss: 0.1955

Epoch 96/100

4/4 - 0s - 5ms/step - accuracy: 0.9250 - loss: 0.1954

Epoch 97/100

4/4 - 0s - 5ms/step - accuracy: 0.9300 - loss: 0.1923

Epoch 98/100

4/4 - 0s - 5ms/step - accuracy: 0.9300 - loss: 0.1919

Epoch 99/100

4/4 - 0s - 5ms/step - accuracy: 0.9200 - loss: 0.1917

Epoch 100/100

4/4 - 0s - 5ms/step - accuracy: 0.9350 - loss: 0.1885

score = model.evaluate(x, v, verbose=0)
print(f"score = {score[0]}")
print(f"accuracy = {score[1]}")

score = 0.18592830002307892
accuracy = 0.9300000071525574

Let’s look at a prediction. We need to feed in a single point as an array of shape (N, 2), where N is the number of points

res = model.predict(np.array([[-2, 2]]))
res

1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 3ms/step


1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 5ms/step

array([[5.3135196e-10]], dtype=float32)

We see that we get a floating point number. We will need to convert this to 0 or 1 by rounding.

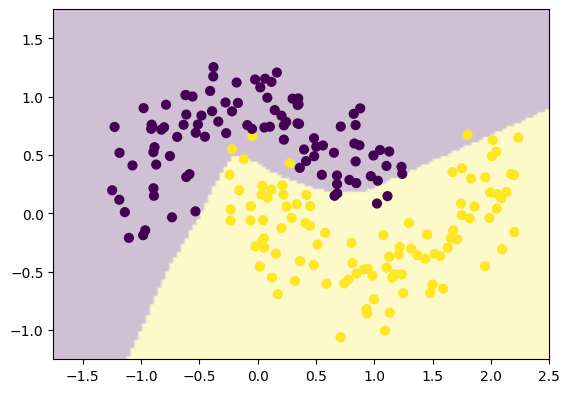

Let’s plot the partitioning

M = 128
N = 128

xmin = -1.75
xmax = 2.5
ymin = -1.25
ymax = 1.75

xpt = np.linspace(xmin, xmax, M)
ypt = np.linspace(ymin, ymax, N)

To make the prediction go faster, we want to feed in a vector of these points, of the form:

[[xpt[0], ypt[0]],
 [xpt[1], ypt[1]],
 ...
]

We can see that this packs them into the vector

pairs = np.array(np.meshgrid(xpt, ypt)).T.reshape(-1, 2)
pairs[0]

array([-1.75, -1.25])

Now we do the prediction. We will get a vector out, which we reshape to match the original domain.

res = model.predict(pairs, verbose=0)
res.shape = (M, N)

Finally, round to 0 or 1

domain = np.where(res > 0.5, 1, 0)

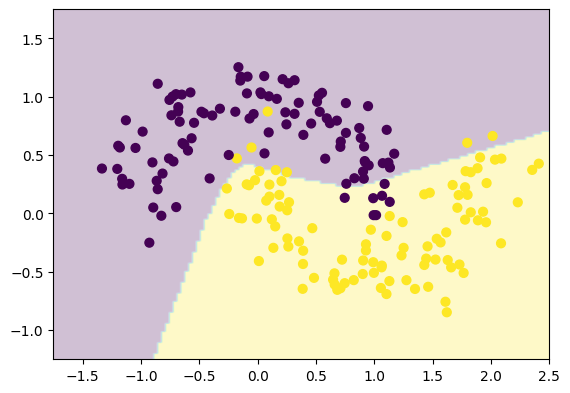

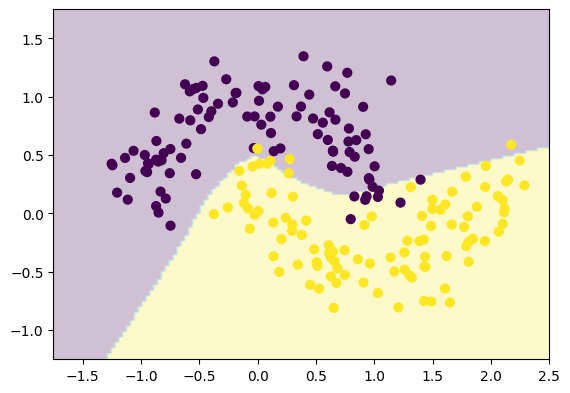

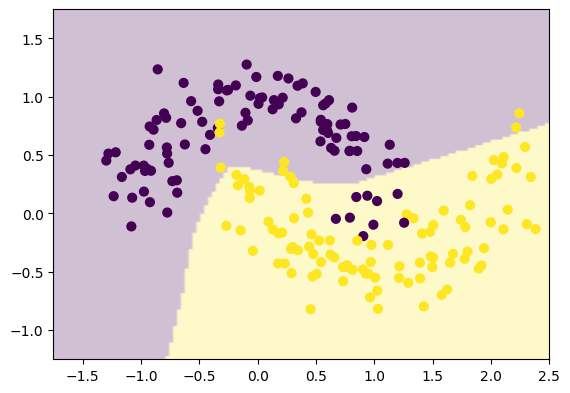

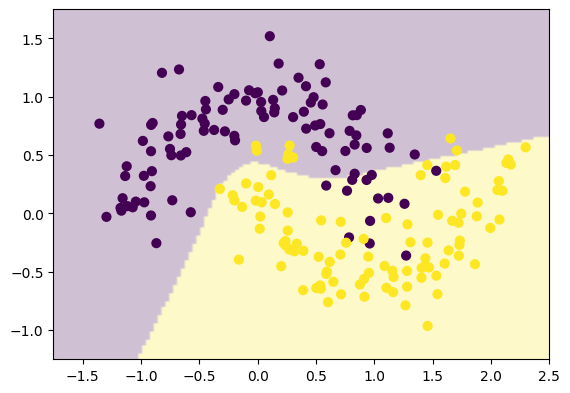

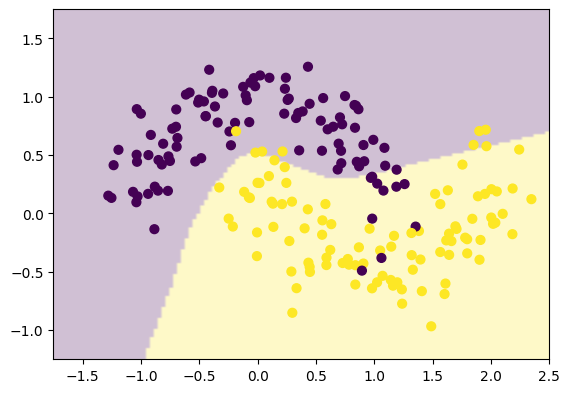

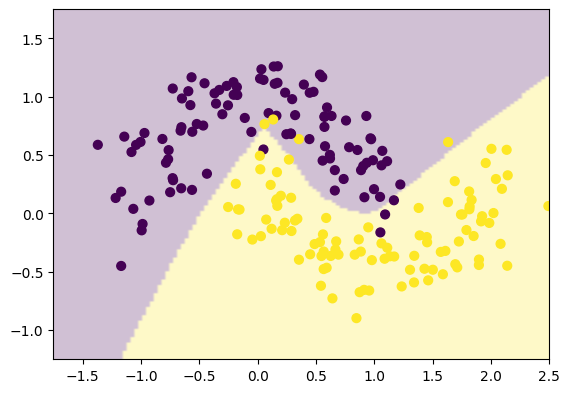

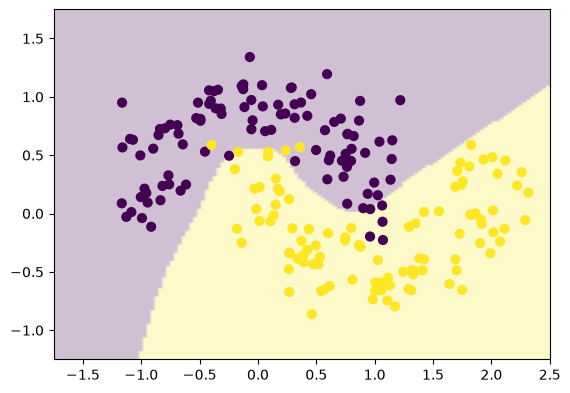

and we can plot the data

fig, ax = plt.subplots()
ax.imshow(domain.T, origin="lower",
          extent=[xmin, xmax, ymin, ymax], alpha=0.25)
xpt = [q[0] for q in x]
ypt = [q[1] for q in x]

ax.scatter(xpt, ypt, s=40, c=v, cmap="viridis")

<matplotlib.collections.PathCollection at 0x7f9b914902d0>

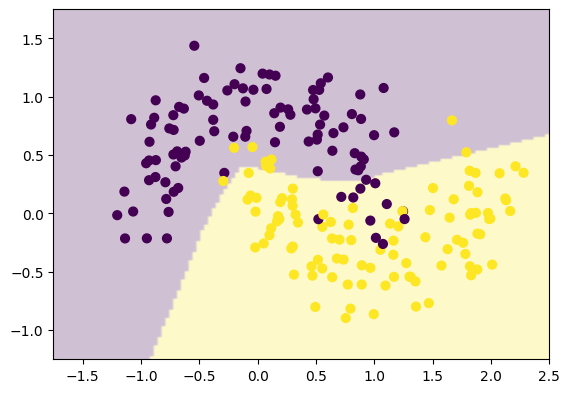

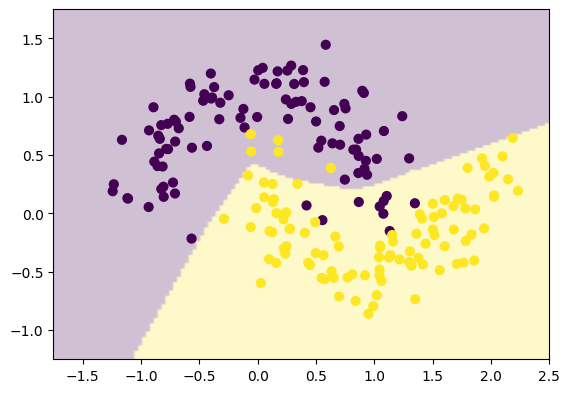

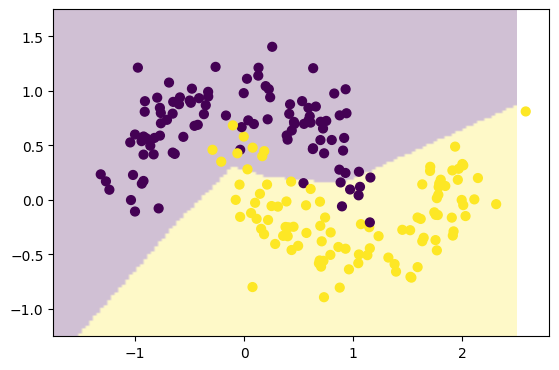

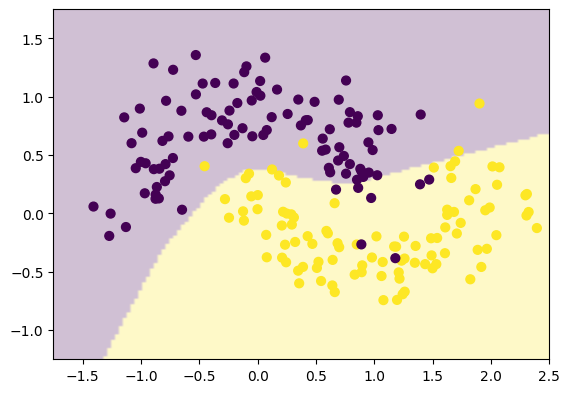

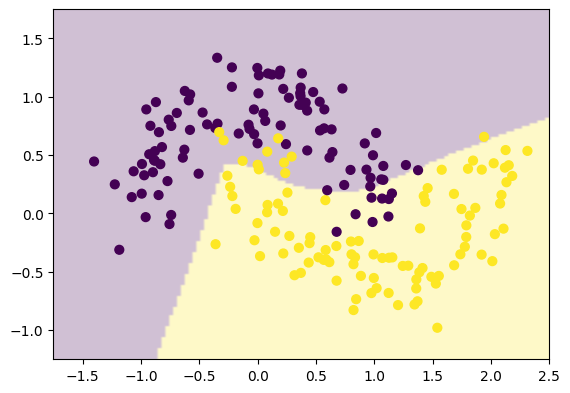

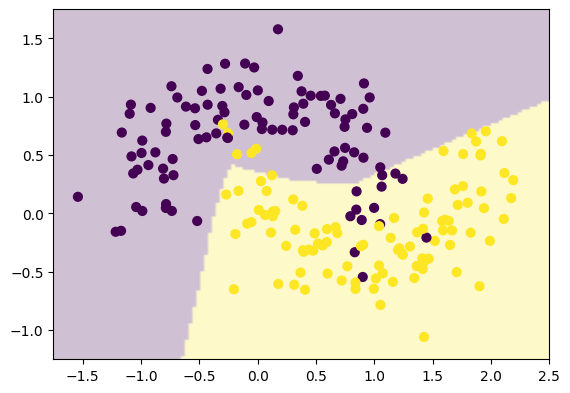

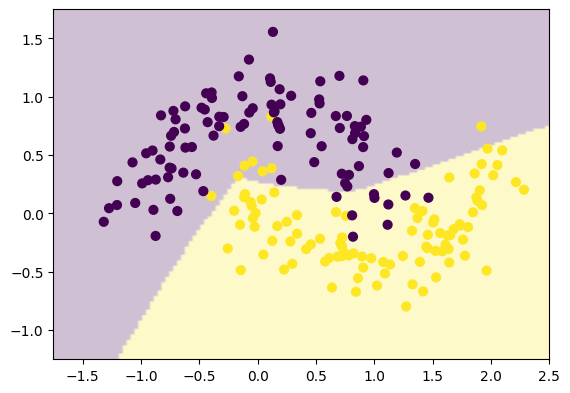

../_images/efe0b70d9fedea508f85a342e981a3cf6c4a927956355c51868a512dea48fe82.png
